Place of Origin: | China |
---|---|
Brand Name: | UCER |
Certification: | Enterprise credit rating AAA |
Model Number: | EP100/EP150/EP200/EP250/EP300 |
Minimum Order Quantity: | 100 meters |
Price: | Negotiable |
Packaging Details: | Iron packing, iron frame or other |
Delivery Time: | 10-30 days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 10000 per month |
Color: | Green | Fabric Layer: | 2-20 Layers |
---|---|---|---|
Bandwidth: | 1200mm | Increase The Conveying Angle: | 30~90 Degrees |
Model: | ST630 | Standard: | GB7984-2001 |
The Thickness Of The Upper Cover: | 3-6mm | The Thickness Of The Lower Cover Rubber: | 1.5-4.5mm |
High Light: | Inclined 2 Ply Conveyor Belt,2 Ply Conveyor Belt 1200mm,Inclined Green Conveyor Belt |

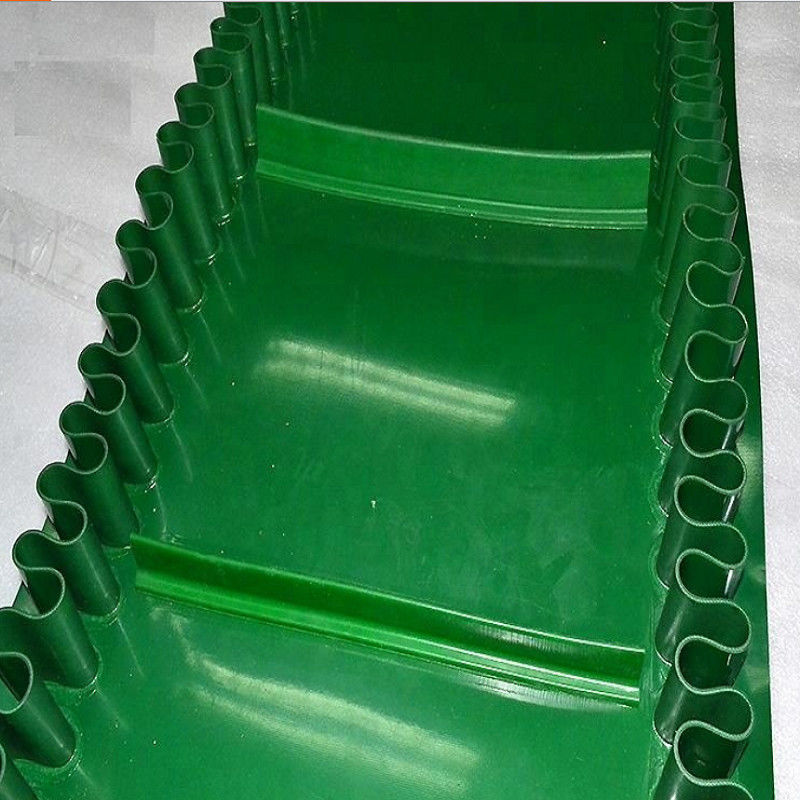

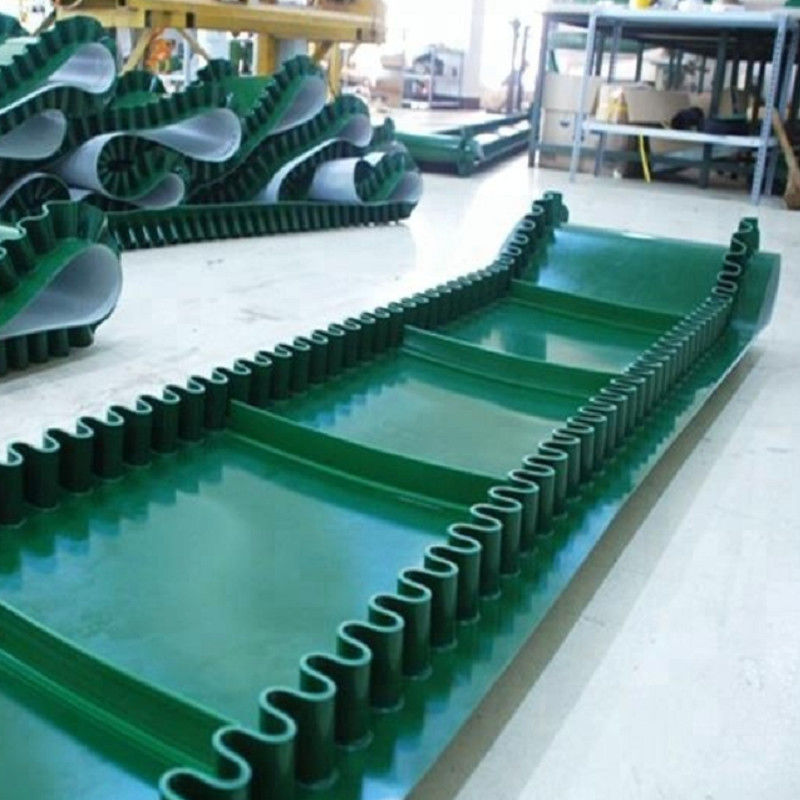

Partition conveyor belt 30~90 degrees 2-20 layers Inclined Conveyor Belts
1. Baseband requirements
The base belt of the partition conveyor belt is required to have a certain degree of tensile strength and wear resistance. Among them, for the partition conveyor belt with empty edges, in order to meet the requirements of the angle, the longitudinal direction of the tape must be flexible, and the transverse direction requires a certain degree of rigidity.
2. Specifications
(1) Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), steel wire rope (ST), etc.
(2) Bandwidth: 100mm-2000mm
(3) Fabric layer: 2-20 layers
(4) Cover rubber: working surface: 1.5-15mm non-working surface: 0mm-6mm
3.Variety
According to the performance of the covering rubber, it can be divided into ordinary type, heat-resistant type, cold-resistant type, acid and alkali-resistant type, oil-resistant type, etc.
4.Implementation standards
Comply with GB7984-2001 standard
<
Variety | Standards and main indicators |
Ordinary steel cord conveyor belt | GB/T9770-2001 |
Flame-retardant steel cord conveyor belt | MT668-1997 |
General flame-retardant steel cord conveyor belt | MT668-1997 |
Heat-resistant steel cord conveyor belt | HG2297-92 |
Wear-resistant steel cord conveyor belt | Shaoboer wear amount ≤90mm 3 |
Acid, alkali and oil resistant steel cord conveyor belt | HG4-846 HG4-846 |
Cold-resistant steel cord conveyor belt | Brittleness temperature -40℃ |
